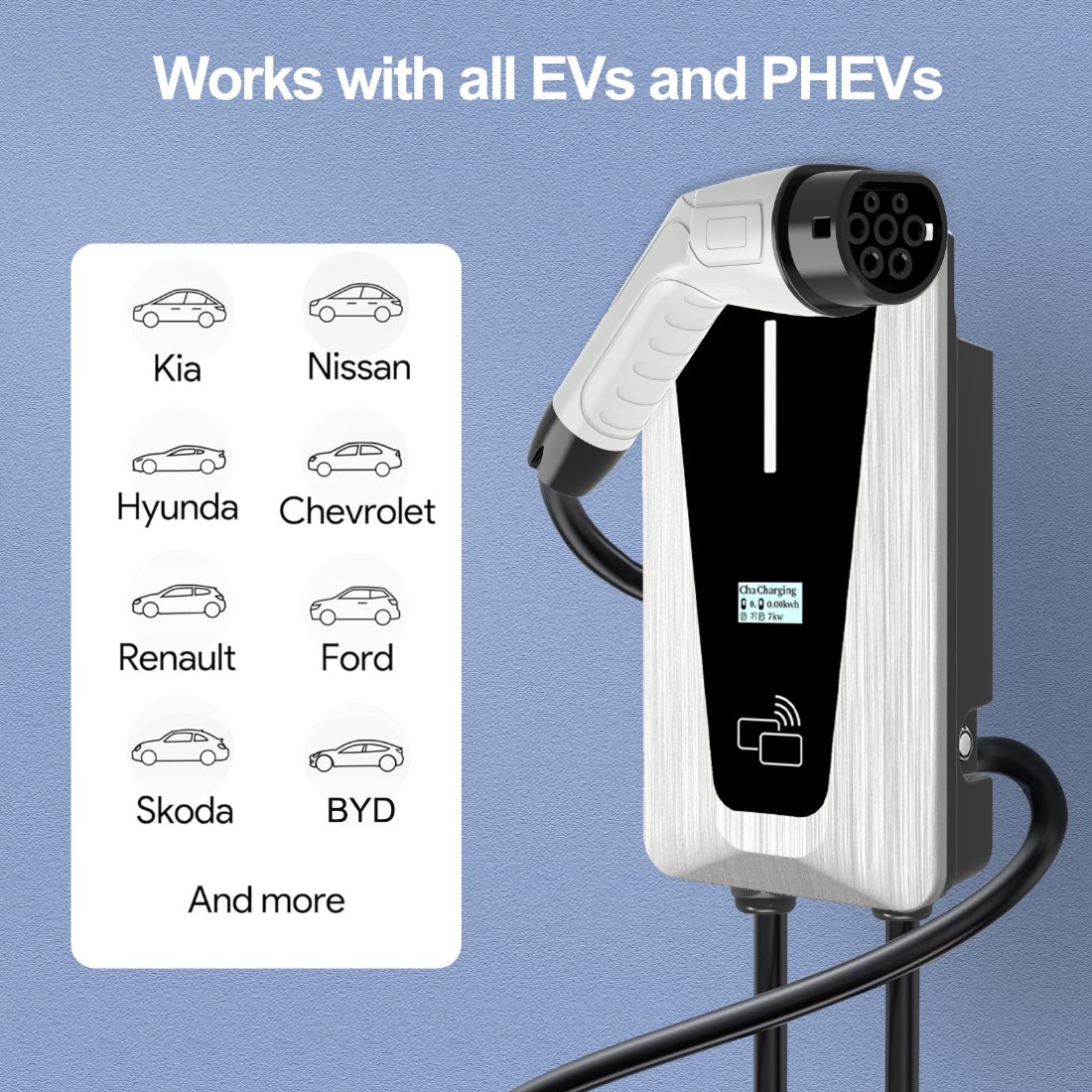

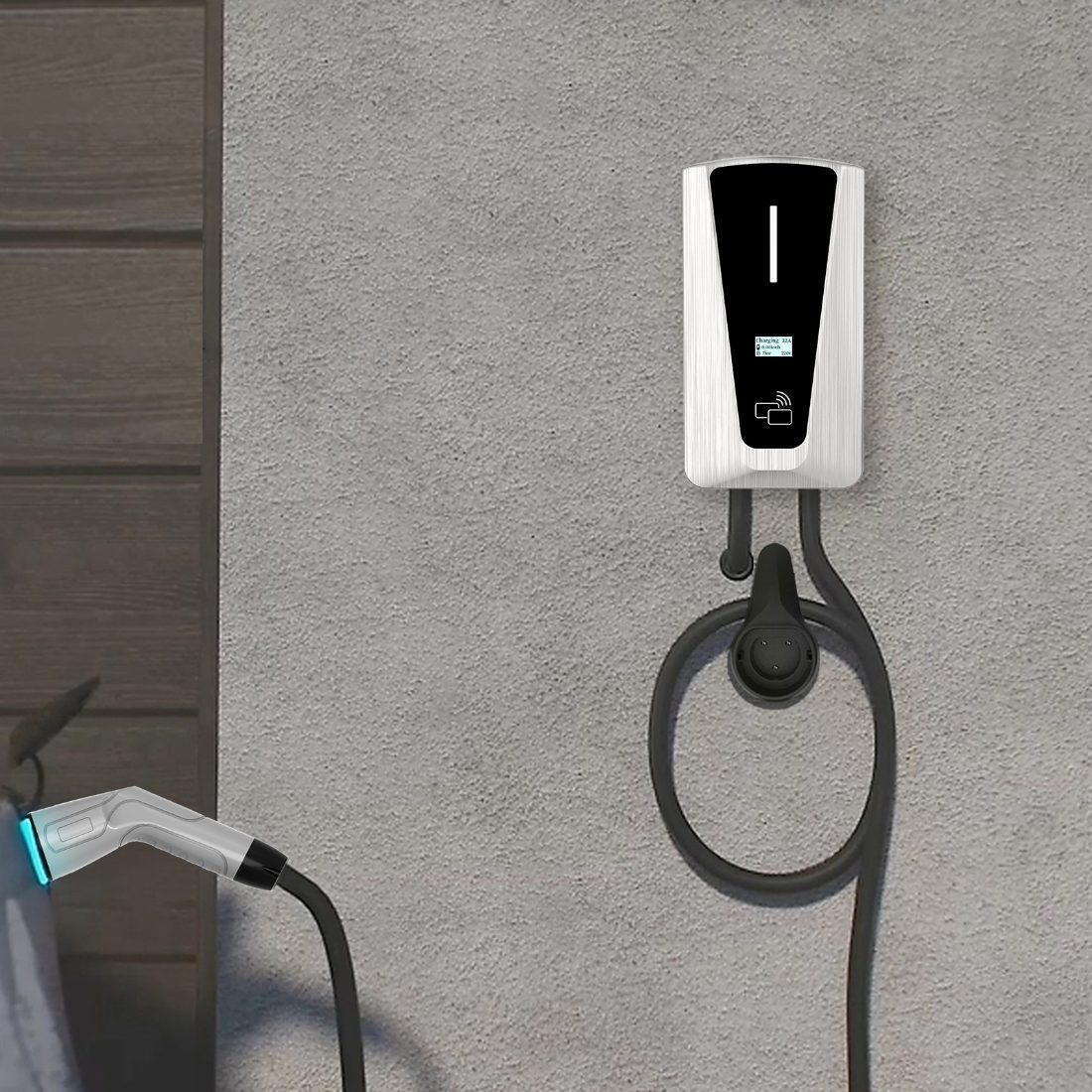

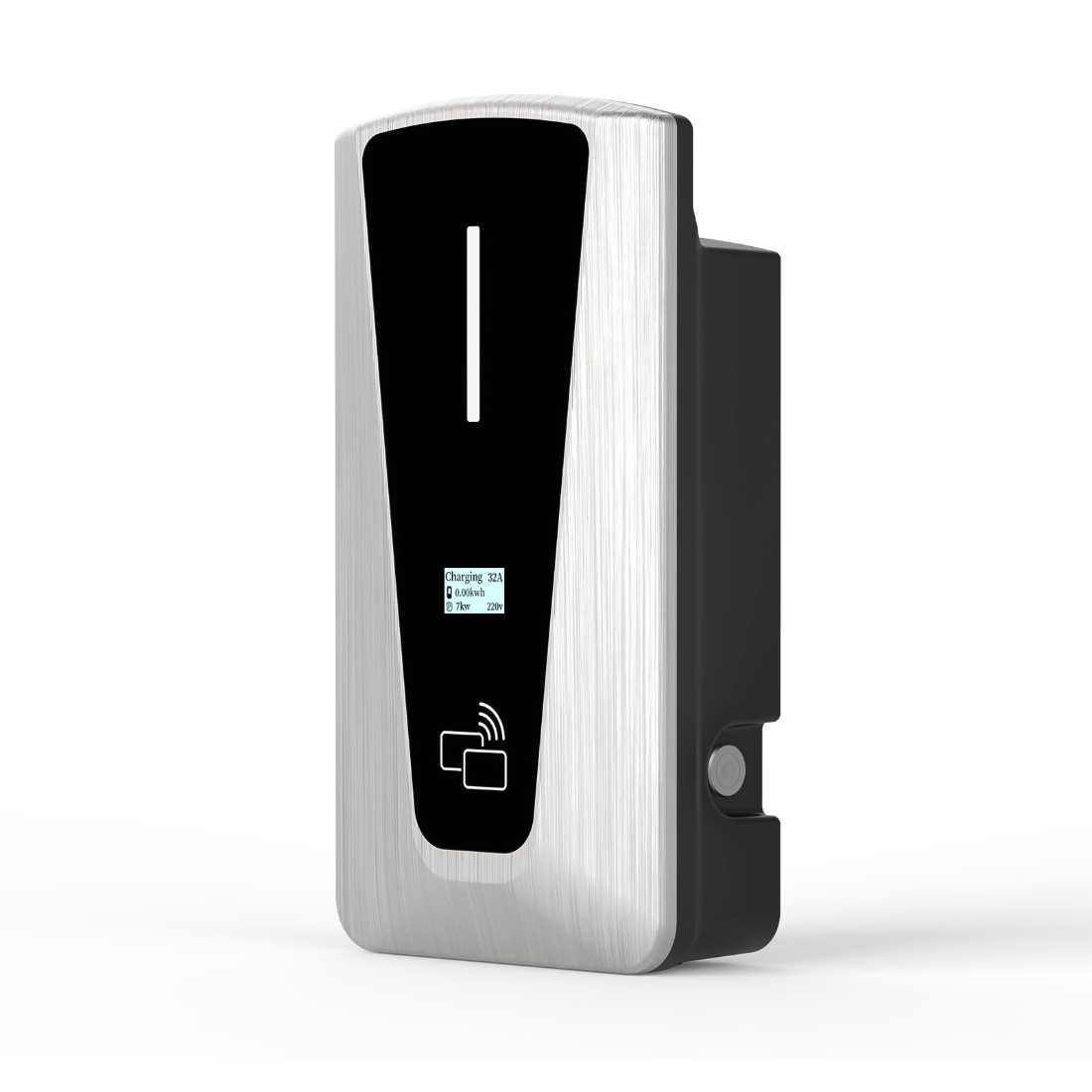

The Wall-mounted EV charging station (home edition) with a color LCD digital screen displays different charging parameters such as current, charging time, temperature, and other EV charging information. This model represents the ultimate solution for all your electric vehicle (EV) charging needs.
Offering a seamless blend of premium quality, outstanding functionality, and a modern design, this charging solution excels in both form and function. Its high level of customization makes it the ideal choice for projects of any size.
| Charger Type | Type 2 |
| Power Supply | 3P+N+PE |
| Rated Voltage | 220VAC |
| Max Input Current | 32A |
| Frequency | 50/60HZ |
| Protection Rank | IP55 |
| Electrical Protection | Over/Under voltage protection, over current protection, over-temperature protection, leakage protection, lightning protection, short circuit protection |
| Certification | CE,UKCA,CB,TUV,ROHS |
| Work Temperature | -30℃~+50℃ |
| PCB Protect Temp. | +80℃ |
| Cooling | Natural Cooling |
| Work Humidity | 5%~95% |
| Overall Dimension(mm) | 286*186*96mm |
| Weight | About 3-4kg |
| Shell Material | UL94V-0 |
| Interface | 1.8inches LCD Screen |
| Cable Length | 5m/Custom |
Tell us your target market, quantity and customization needs.
