The Wall-mounted EV charging station (commercial version) with a 4.3 inch color LCD digital screen displays different charging parameters such as current, charging time, temperature, and other EV charging information and supports the OCCP1.6 J protocol. Appointment for charging is available by connect to the APP Smart Life, or swipe card to start charging. This product has been tested by professional institutions and has obtained certificates such as TUV, UKCA, CE, and ROHS.
| Charger Type | Type 1 |

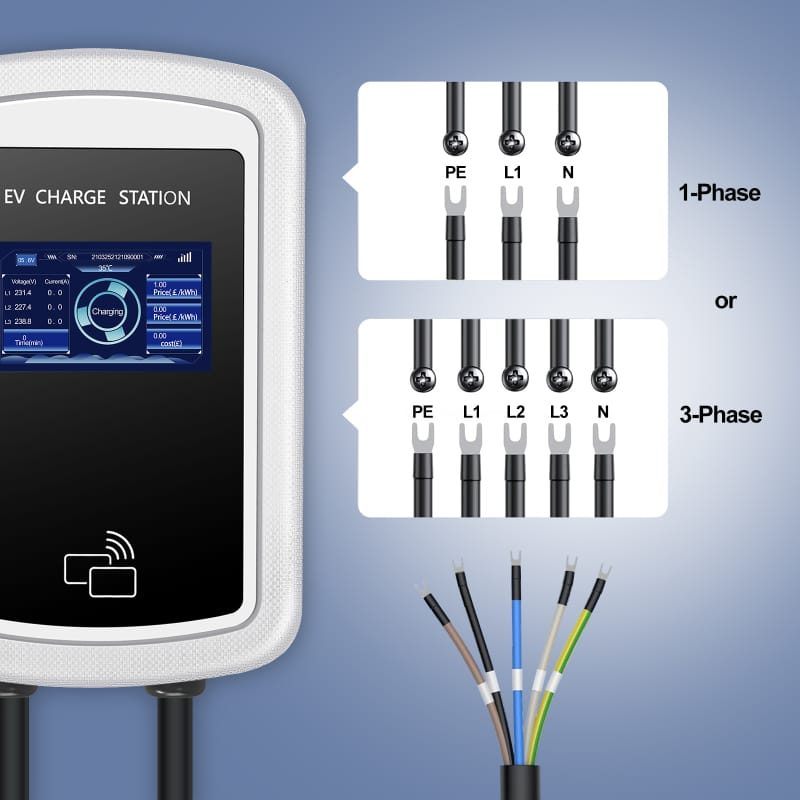

| Power Supply | 3P+N+PE |
| Rated Voltage | 220VAC/380VAC |
| Max Input Current | 32A |
| Withstand Voltage | 2000V |
| Max Output Power | 7/11/22KW |
| Frequency | 50/60HZ |
| Protection Rank | IP55; IP67 |

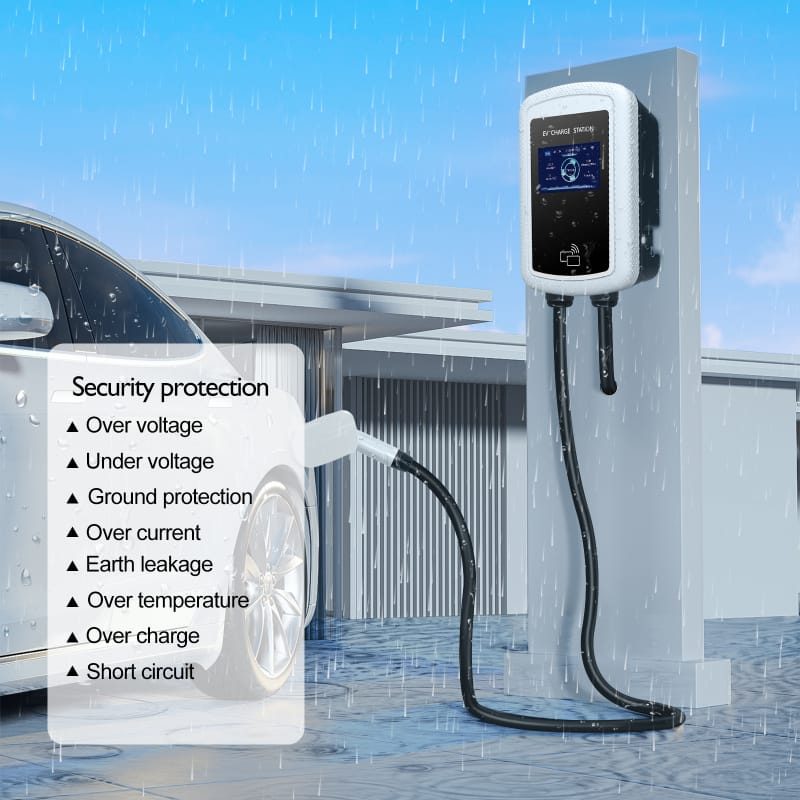

| Electrical Protection | Over/Under voltage protection, over current protection, over-temperature protection, leakage protection, lightning protection, short circuit protection |

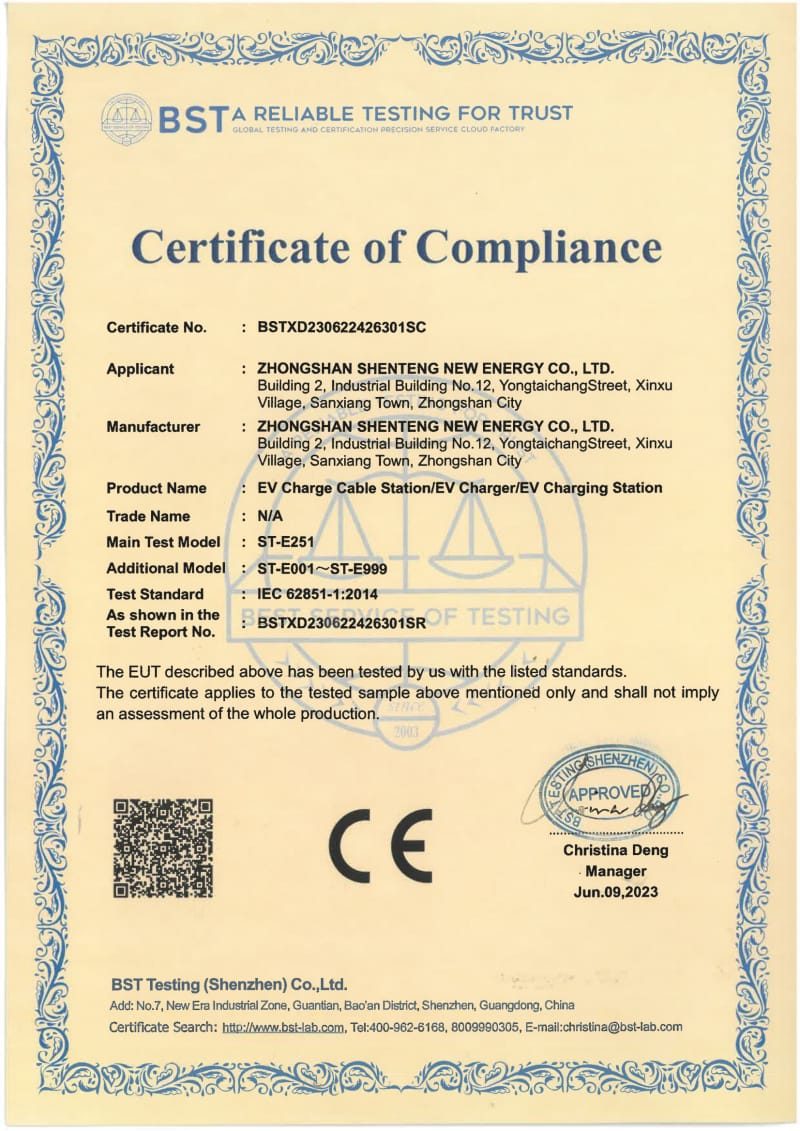

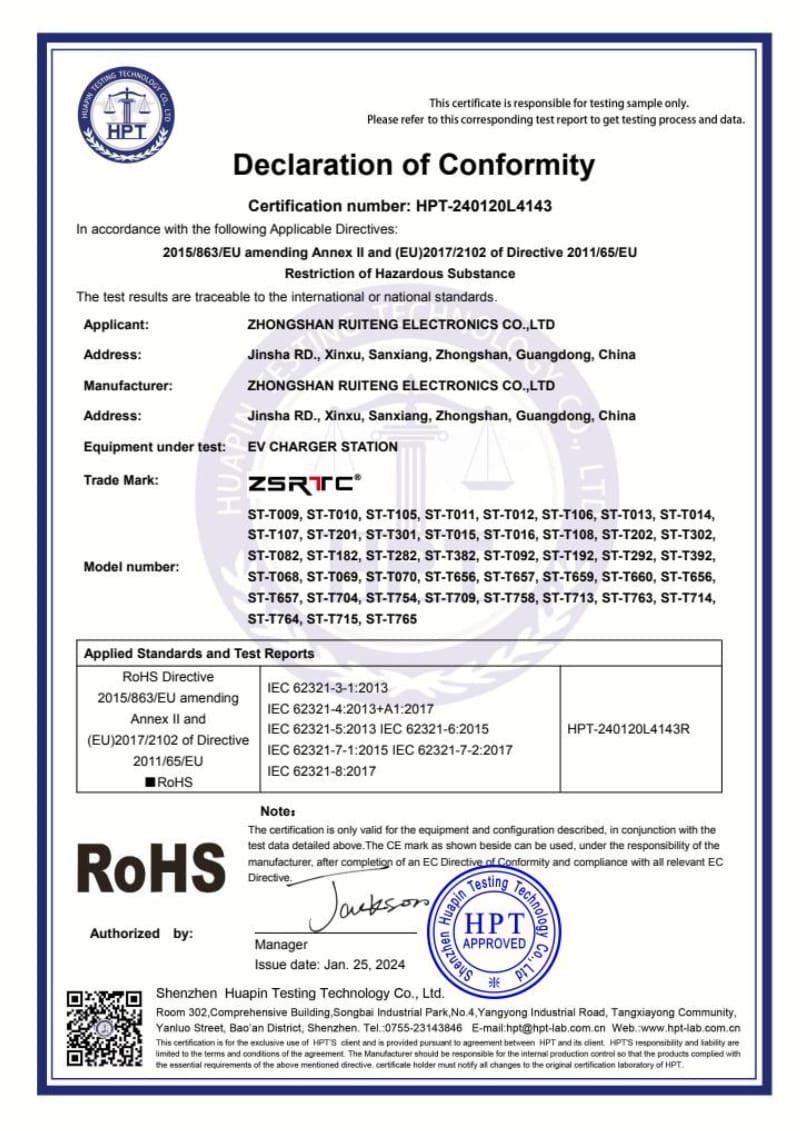

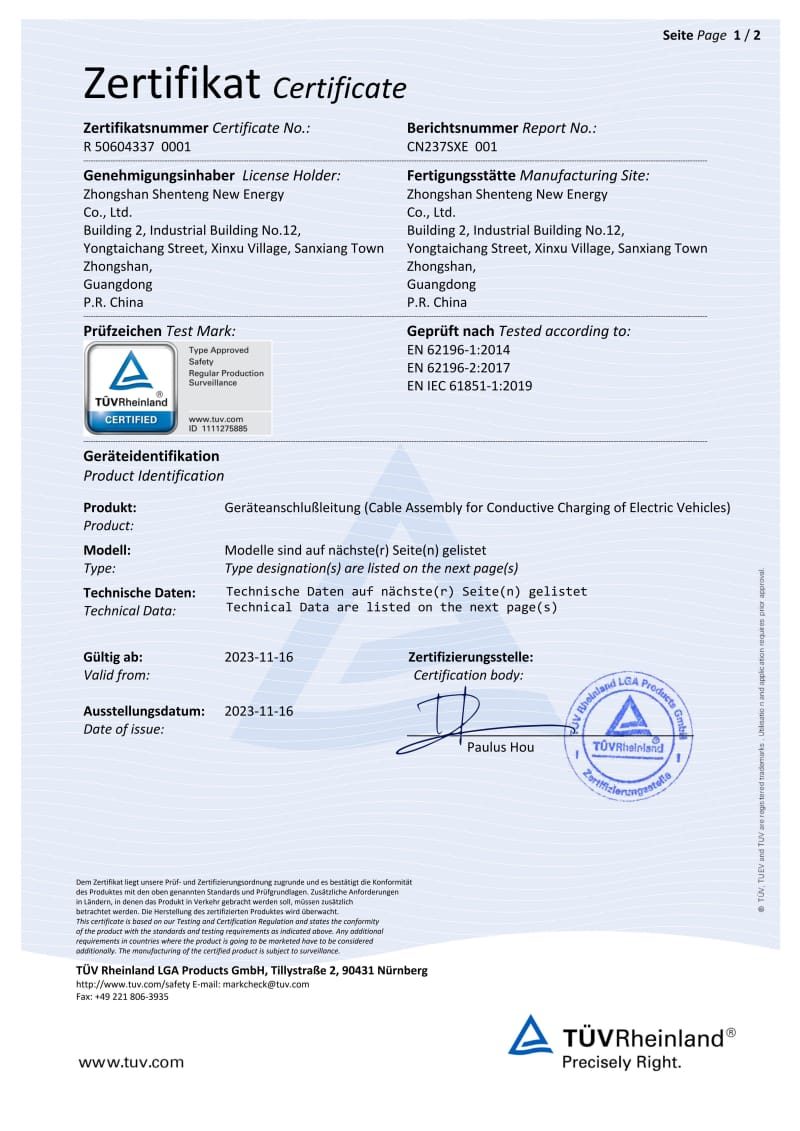

| Certification | CE,UKCA,CB,TUV,ROHS |
| Warranty | 1 year |
| Work Temperature | -30℃~+50℃ |
| PCB Protect Temp. | +80℃ |
| Cooling | Natural Cooling |
| Work Humidity | 5%~95% |
| Work Altitude | Up to 2000m |
| Overall Dimesion(mm) | 286*186*96mm |
| Weight | About 4-5kg |
| Shell Materia | UL94V-0 |
| Interface | 4.3inches LCD Screen |
| Cable Length | 5m/Custom |
| Installation Model | Wall-mounted |
| Current Adjustment | 32/24/20/16/13/ 10/8A |
| OCPP 1.6 J | RJ45/4G+RJ45/Dynamic load balance |
| App Control | Smart Life App |
Tell us your target market, quantity and customization needs.
