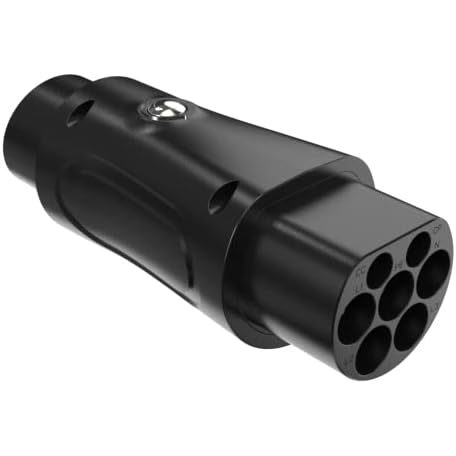

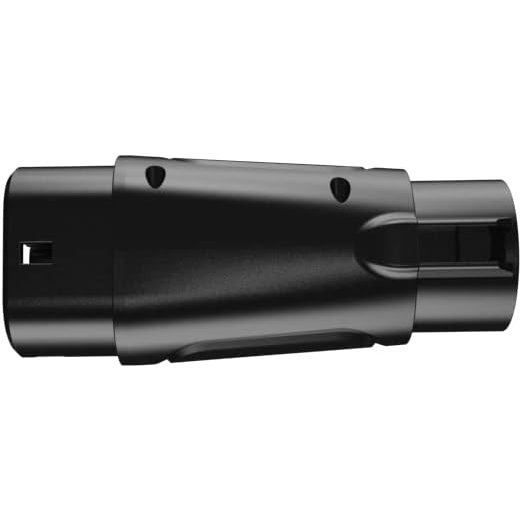

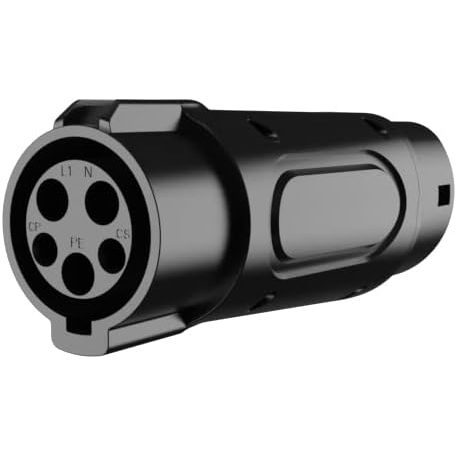

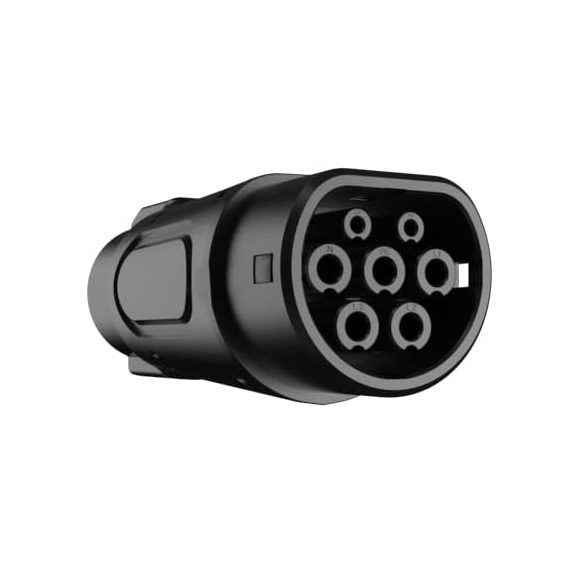

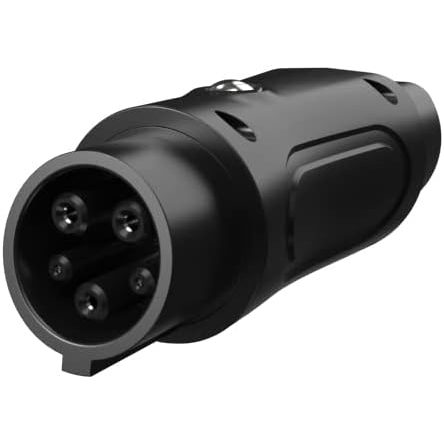

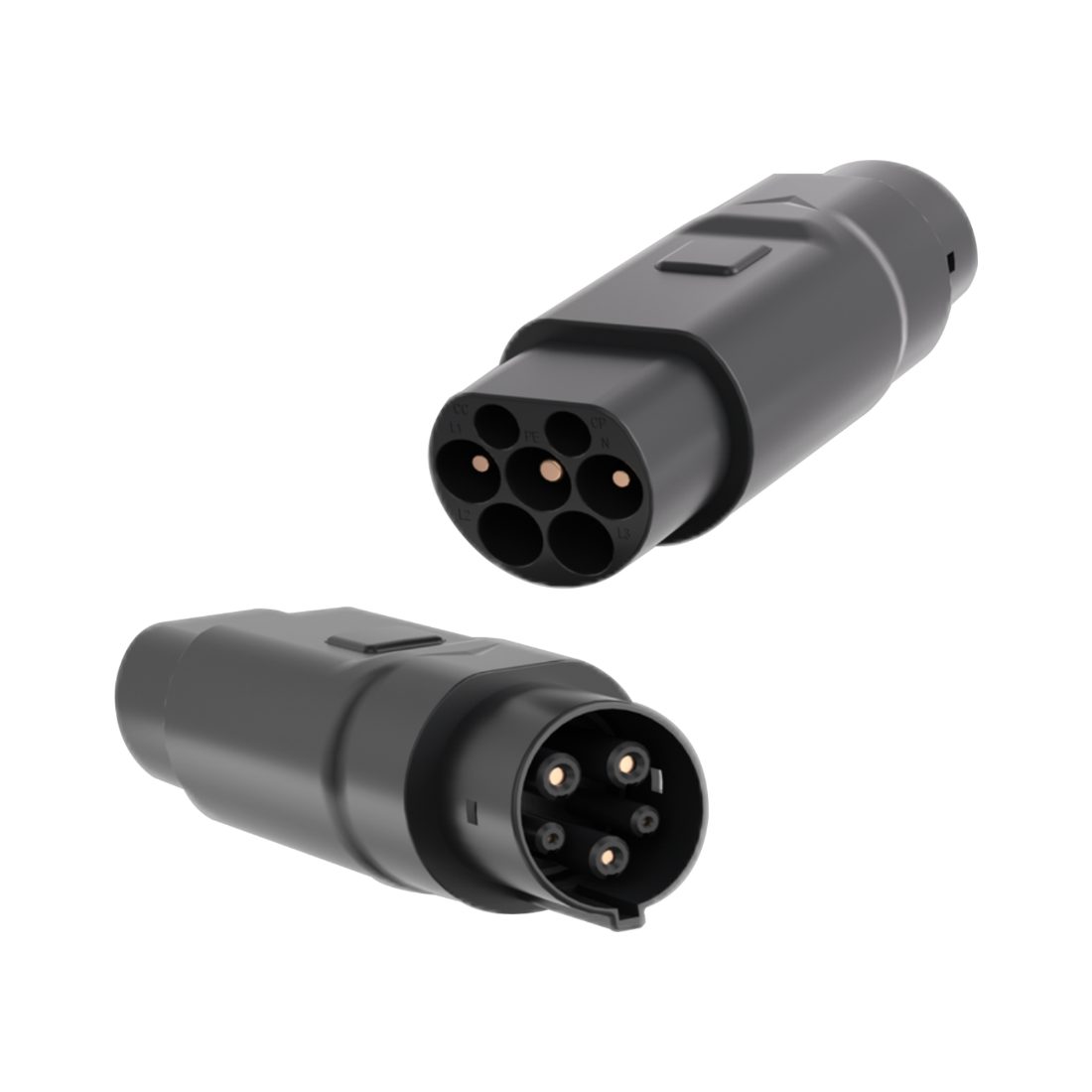

EV Charging Adapter 230V 7KW Thermoplastic Type 2 to Type 1 EV Charging Connector IP54 Protection 16A 32A
Item Type: Type 2 to Type 1 Connector
Material: Thermoplastic
Flame Retardant Grade: UL94-V- 0
Rated current: 16 A/32 A AC
| Protection rank | IP54 |
| Fire retardant level | UL94V-0 |
| Rated Current | 8A/10A/13A/16A |
| Insulation resistance | >100M ohm (DC 500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.05 MQ |
| Coupled insertion force | >45N>80N |
| Operating temperature | -35℃ to 50℃ |
| Meet the standard | IEC62196 Type2 |
| Charging cable | NO |
| Mechanical life | No-load plug in/pull out> 10000 times |
| Impact resistance | 1m drop or 2 Ton vehicle run over pressure |
| Product features | Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance. |
