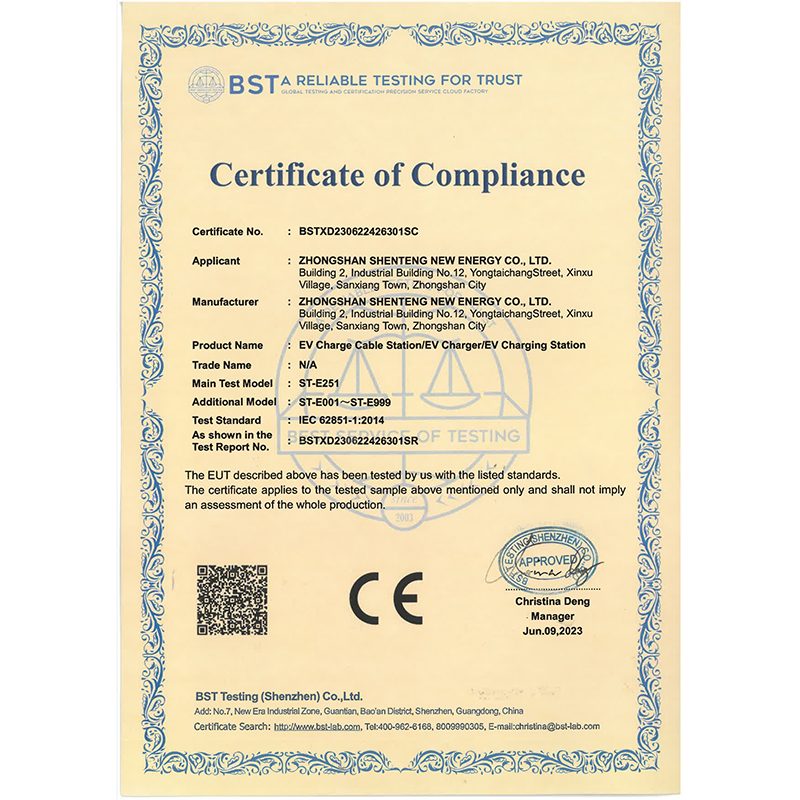

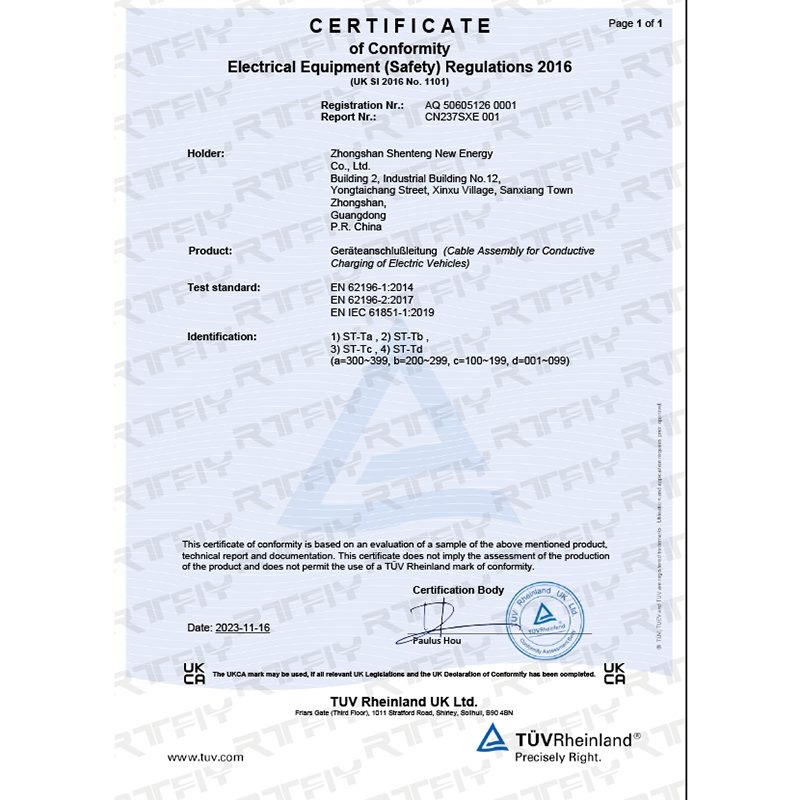

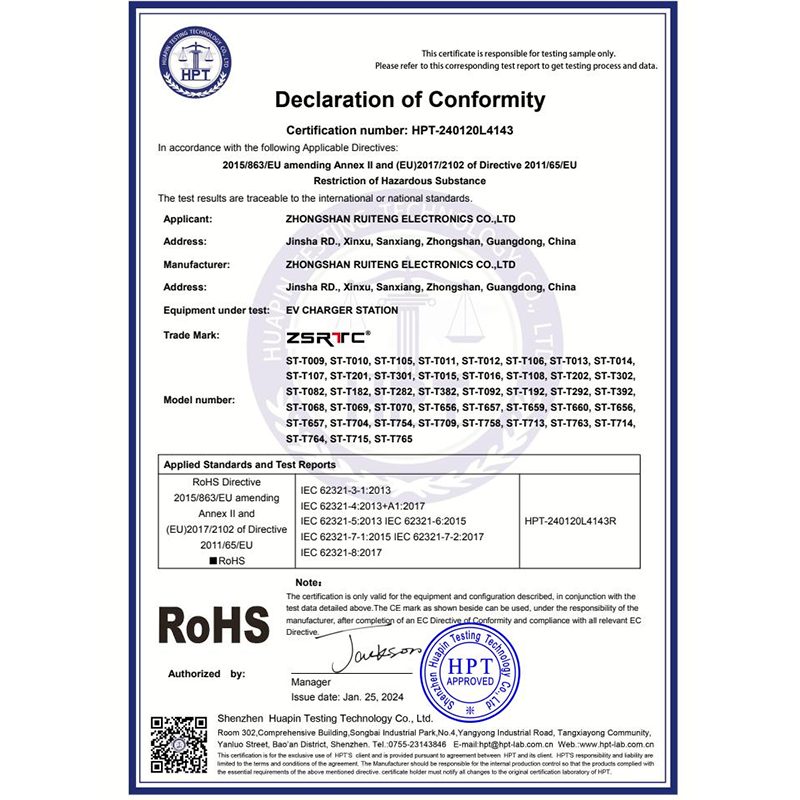

The adjustable current Type 1 portable EV charger with LED screen which shows all the details and situations you want to know while charging is suitable for all plug-in hybrids and electric vehicles that meet American standards. This product can be used with a range of power plugs, including as CEE, Schuko, BS, NEMA, and others and has been tested by specialized institutes and is certified by TUV, UKCA, CE, and ROHS. Portable and intelligent, ANE chargers let you track, manage, and optimize electric vehicle charging.
The replaceable power plugs connect through an aviation quick connector, allowing you to swap CEE, Schuko, UK and other plugs in seconds — one charger for every socket.
| Rated Voltage | 220V/AC, 380V/AC |
| Max Input/Output Current | 16A/32A |
| Withstand Voltage | 2000V |
| Max Input/Output Power | 3.5KW/7KW/11KW/22KW |
| Frequency | 50/60HZ |
| Protection Rank | IP55; IP67 |

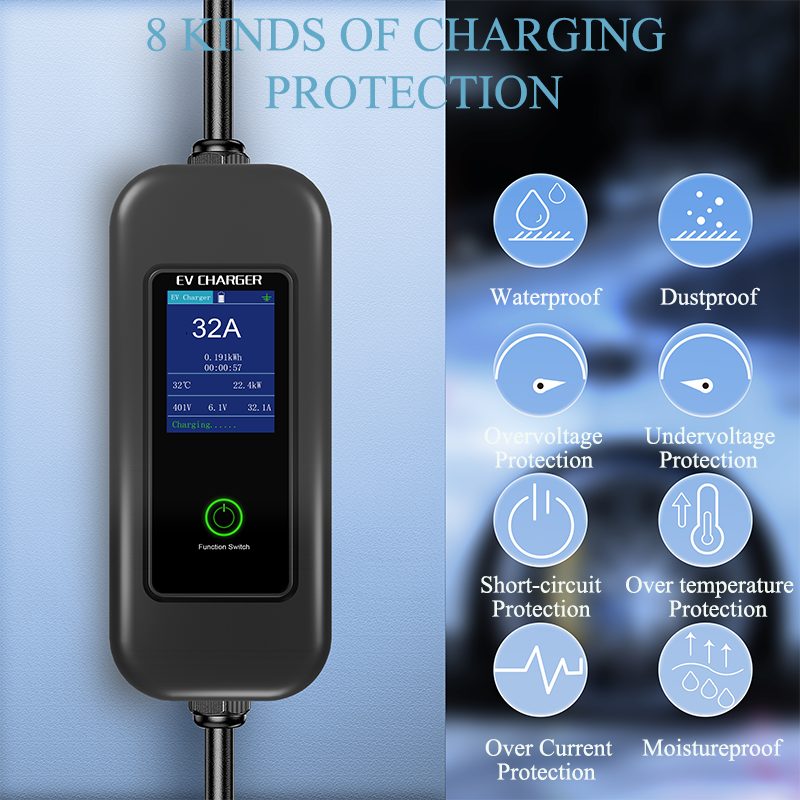

| Electrical Protection | Over/Under voltage protection, over current protection, over-temperature protection, leakage protection, lightning protection, short circuit protection |
| Certification | CE, UKCA,CB,TUV,ROHS |
| Work Temperature | -30℃~+50℃ |
| PCB Protect Temp. | +80℃ |
| Cooling | Natural Cooling |
| Work Humidity | 5%~95% |
| Work Altitude | Up to 2000m |
| Shell Materia | UL94V-0 |
| No-Load Plug In/Pull Out | >1000 Times |

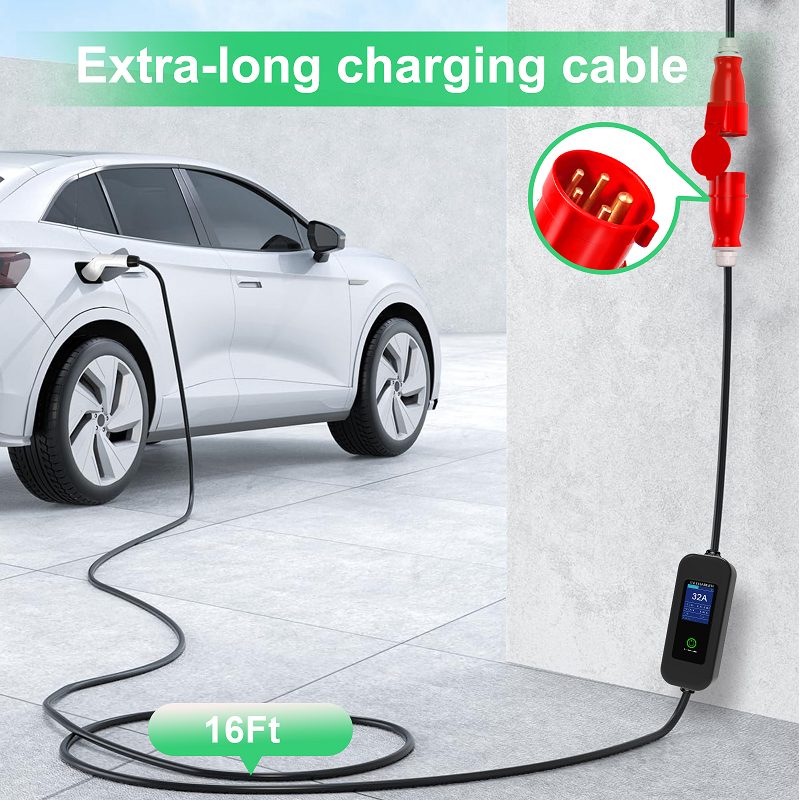

| Cable Length | 5m/Custom |
Tell us your target market, quantity and customization needs.
