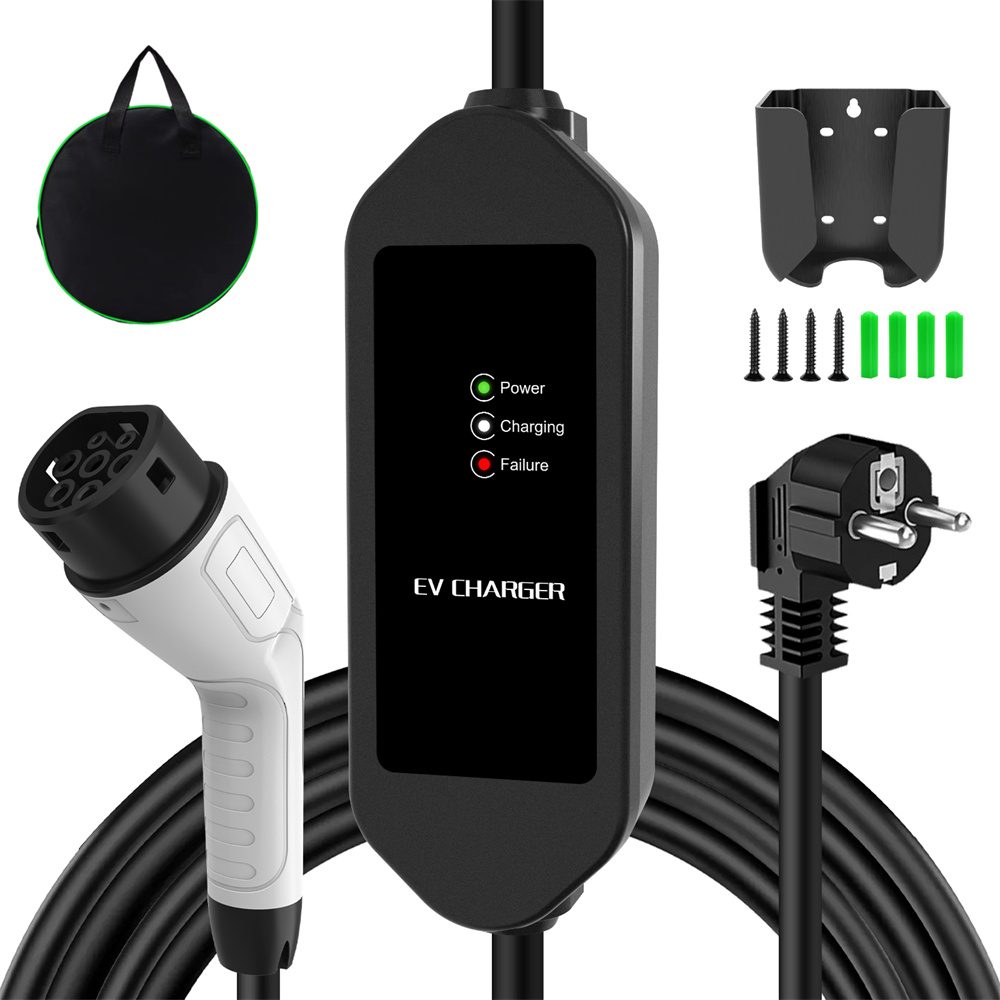

The portable EV charger can be equipped with different power plugs, such as CEE, Schuko, BS, NEMA, etc., to ensure it is suitable for all markets worldwide.CHARACTERISTICS1. Current Range：8A/10A/13A/16A/32A2. Power supply：110V~250V AC3. Insulation Resistance：＞1000MΩ（DC500V）4. Withstand Voltage：2000V5. Contact Resistance：0.5mΩ Max
| Protection rank | Charger: IP67; Controller:IP54 |
| Fire retardant level | UL94V-0 |
| Rated Current | 8/10/13/16/32A |
| Insulation resistance | >100M ohm (DC 500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.05 MQ |
| Coupled insertion force | >45N>80N |
| Operating temperature | -35℃ to 50℃ |
| Meet the standard | IEC62196 Type2 |
| Charging cable | TPU |
| Mechanical life | No-load plug in/pull out> 10000 times |
| Impact resistance | 1m drop or 2 Ton vehicle run over pressure |
| Product features | Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance. |
