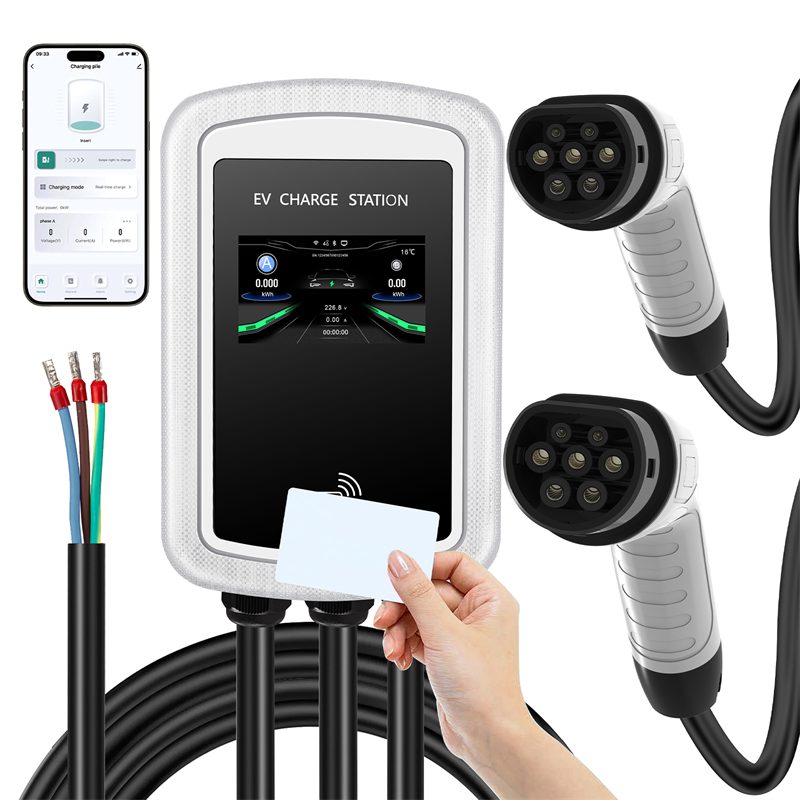

The Single Phase Type 2 Double Charger Plugs Wall-mounted EV charge station (home edition) with a 4.3 inch color LCD digital screen displays different charging parameters such as current, charging time, temperature, and other EV charging information. Appointment for charging is available by connect to the APP 'smart life', or swipe card to start charging. The EV charging Stations feature adjustable current, delayed charging time and optional grounding protection.
| Charger Type | Type 2/Type/1/GBT |
| Input/Output voltage | AC 110~250V/Single Phase |
| Input/Output Current | 8/10/13/16/20/24/32A |
| Max Output Power | 7kW |
| Frequency | 50/60HZ |
| Input Cable | 0.5M |
| Output Cable | 4.5M |
| Withstand Voltage | 2000V |
| Operating Temperature | -30℃~+50℃ |
| PCB Protect Temp. | +80℃ |
| Work Altitude | <2000M |

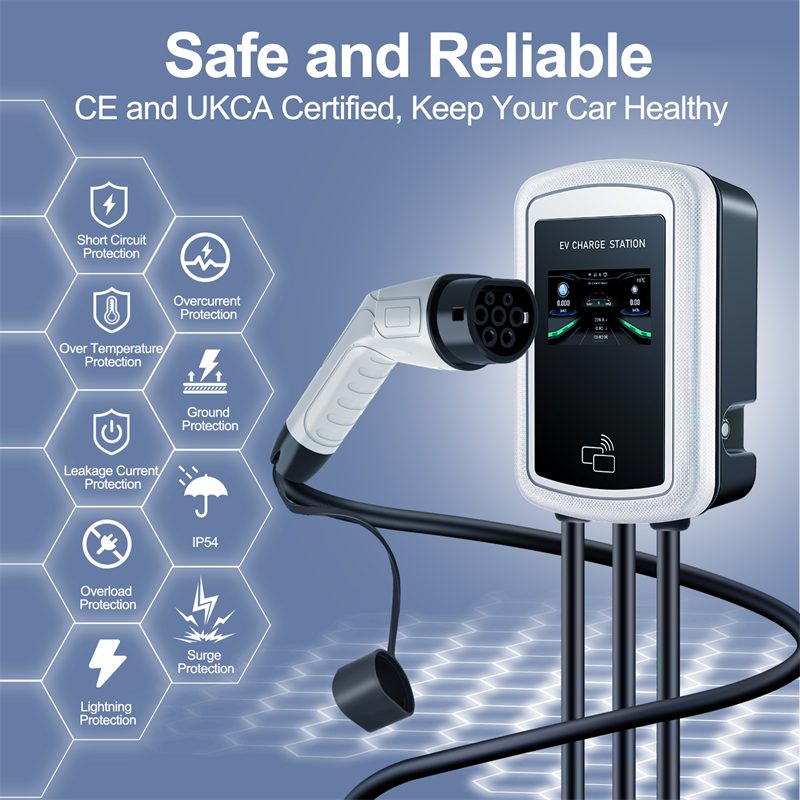

| Protection | over voltage protection,over current protection, over-temp protection, under voltage protection, leakage protection, lightning protection, short circuit protection |
| IP Level | IP55;IP67 |
| Touch Button | Yes |
| LCD Screen | 2.8/4.3inch |
| Current Adjustingment | Yes |
| APP Control | Yes |
| RFID | Yes |
| Controller Size | 286*186*96mm |
| Timing/Appointment | Yes |
| Certification | CE,UKCA,CB,TUV,ROHS |
Tell us your target market, quantity and customization needs.
